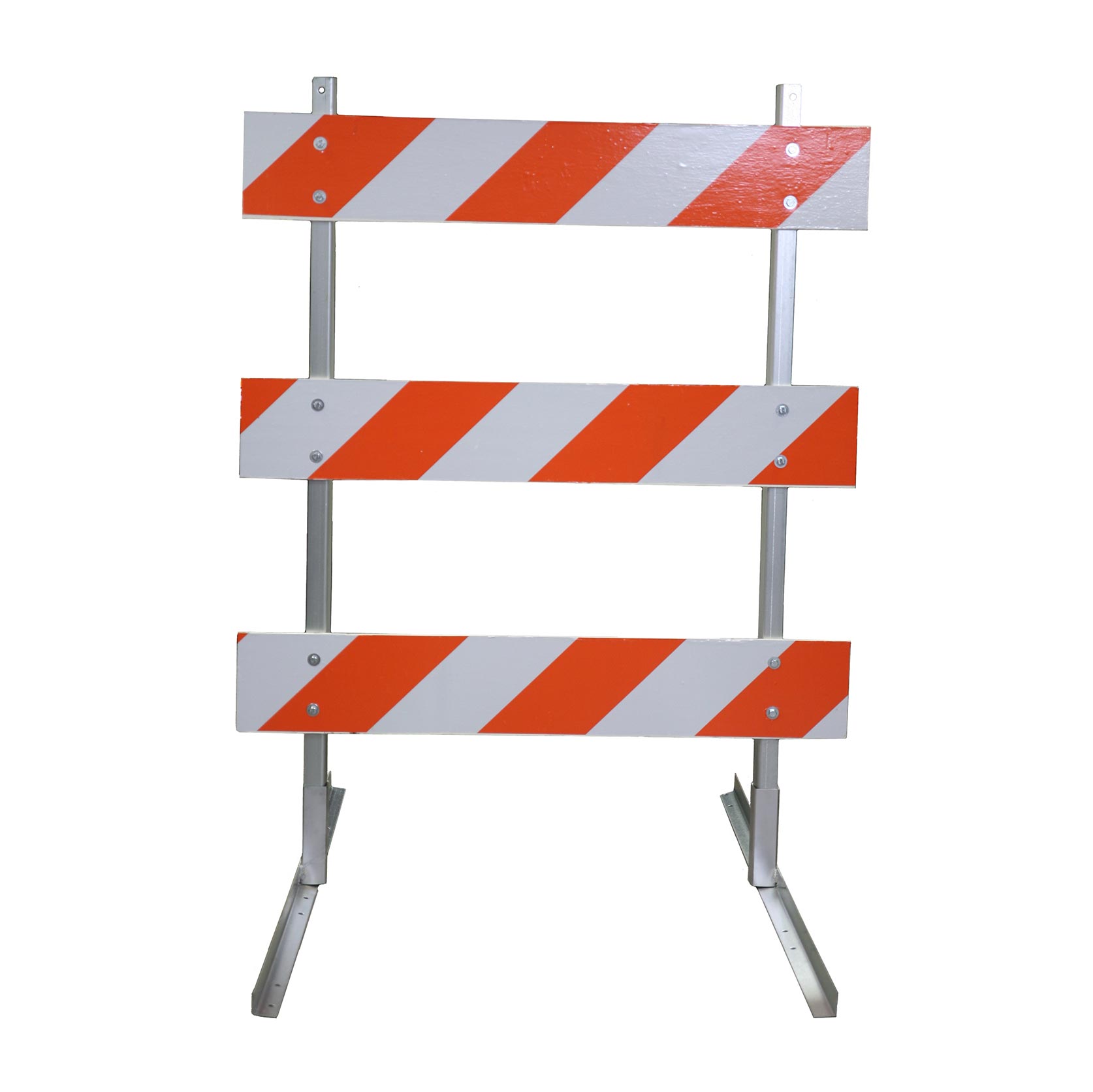

Thumbnail Filmstrip of TD2500 Type III Works Barricade Plywood/Angled Steel Images
COMPLIANCE
- NCHRP350 Compliant: WZ-85, WZ-54
- MUTCD Compliant
- All Sheeting is ASTM 4956 compliant
Product Features:
- Type III barricades can be purchased as assembled units or component parts.and Legs and boards are available for individual purchase.and All TD2500 components are interchangeable.
- Durable hot rolled carbon steel upright frame and base stand with 2" x 2" square tubing receiver.
- Designed to accommodate two warning lights.
- Distinctive base design allows for short term or permanent fastening.
- Frame and base are protected with powder coated enamel paint.
- Plywood boards can accommodate reflective sheeting on both sides.
| Base Color: | White powder coated enamel paint |
| Base Dimensions: | 60.00" long X 1.75 (each side) |
| Base Material: | Hot rolled high carbon steel |
| Base Weight: | 8.5 lbs |
| Board Length: | 4', 6' , 8', 10', & 12' |
| Board Material: | Plywood |
| Board Thickness: | 3/4" |
| Board Width: | 8.00" |
| Center to Center Dimensions: | 20.00" minimum |
| Height of Bottom Panel / Board of Roadway: | 12.00" minimum |
| Height of Sheeting Above Roadway: | 60.00" minimum |
| Height of Top Board Above the Roadway: | 60.00" minimum |
| Overall Height: | 60.00" minimum |
| Reflective Sheeting: | Many options available |
| Short Description: | The TD2500 Type III barricades can be purchased as assembled units or interchangeable component parts. Legs and boards are available for individual purchase. The TD2500 Works Type III Boards are currently available in White. Three D Traffic Works can manufacture this product to your desired color. |
| Type III: | YES |
| Upright Dimensions: | 63.00" X 1.75" (each side) |
| Upright Material: | Hot rolled high carbon steel |
Download PDFs:
Product Information Sheet
Approvals & Certifications
MSDS PDFS
