TD2400 Type III Work Barricade - All Plastic

Thumbnail Filmstrip of TD2400 Type III Work Barricade - All Plastic Images

    COMPLIANCE
    • NCHRP350 Compliant: WZ-217
    • MUTCD Compliant
    • All Sheeting is ASTM 4956 Compliant
    Rail Boards are made of 100% recycled materials

    cal recycle icon
    usa icon
    Purchase TD2400 Type III Work Barricade - All Plastic

    SKU: TD2400 TD2400 Type III Work Barricade - All Plastic

    Pallet Qty. 25 Units

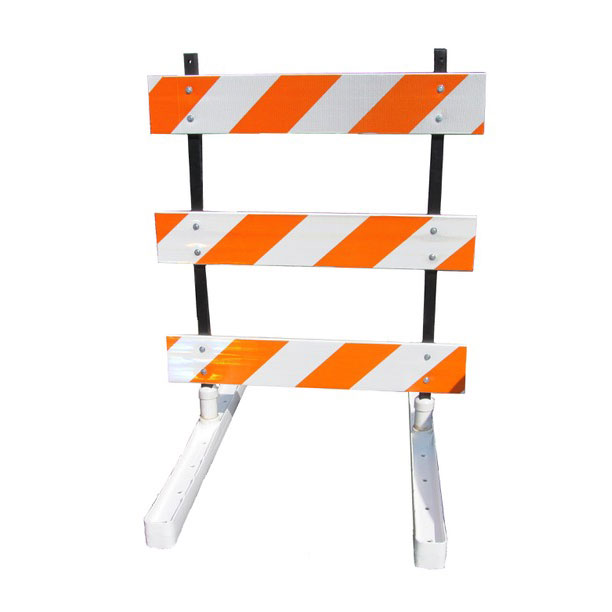

    The TD2400 Type III plastic barricade is designed to yield upon impact to minimize damage to vehicles.

    Choose the following options for your quote:

    Select Sides:

    to access your Job Lists.

    Product Features:

    • Reinforced ribs in the uprights provide extra strength that reduces bending and warping in hot climates.
    • All plastic materials are manufactured from specially formulated UV Stabilizer Polymer Alloys with our exclusive Cold Weather Protection Package.
    • Lightweight, durable, and easy to assemble.
    • Endcap for the TD2400 board provides internal support that eliminates tightening problems on hollow core plastic boards.
    • Unistrut's Telespar Tubing has Breakaway Base feature.
    • All reflective sheeting complies with ASTM4956.

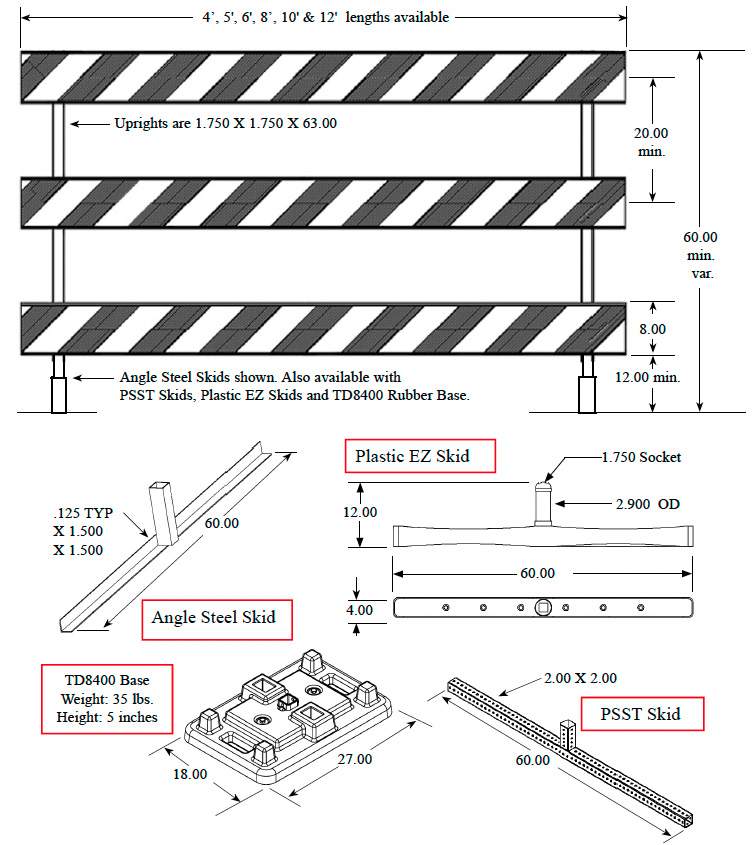

    Product Specifications:

    Base Weight :Rubber Base: 35 lbs
    Board Length :4', 6', & 8'
    Board Material :UV Stabilized polymer with cold weather protection package
    Board Thickness :1.00" or 2.00"
    Board Width :8.00"
    Height of Bottom Panel / Board of Roadway :12.00" minimum
    Height of Sheeting Above Roadway :60.00" minimum
    Height of Top Board Above the Roadway :60.00" minimum
    Reflective Sheeting :Many options available
    Type III :YES
    Upright Dimensions :1.75" X 1.75" X 63.00"
    Upright Material :UV stabilized polymer with cold weather protection package

    Download PDFs:
