COMPLIANCE
- NCHRP350 Compliant: WZ-128
- MUTCD Compliant
- All Sheeting is ASTM 4956 compliant


Product Features:
- Type III barricades can be purchased as assembled units or component parts.and Legs and boards are available for individual purchase.and All TD2600 components are interchangeable.
- Durable hot rolled carbon steel upright frame and base stand with 2" x 2" square tubing receiver.
- Distinctive base design allows for short term or permanent fastening.
- Frame and base are protected with powder coated enamel paint.
- Available with 1" x 8" extruded plastic boards (TD4000) in any length desired. Endcaps on boards provide internal support that eliminates tightening problems found on hollow core boards.
Base Dimensions: | 60.00" long X 1.75" (each side) |
Base Material: | Hot rolled high carbon steel |
Base Weight: | 8.5 lbs |
Board Length: | 4', 6' , 8', 10', & 12' |
Board Material: | UV Stabilized polymer with cold weather protection package |
Board Thickness: | 1.00" |
Board Width: | 8.00" |
Center to Center Dimensions: | 20.00" minimum |
Colors: | White |
Height of Bottom Panel / Board of Roadway: | 12.00" minimum |
Height of Sheeting Above Roadway: | 60.00" minimum |
Height of Top Board Above the Roadway: | 60.00" minimum |
Reflective Sheeting: | Many options available |

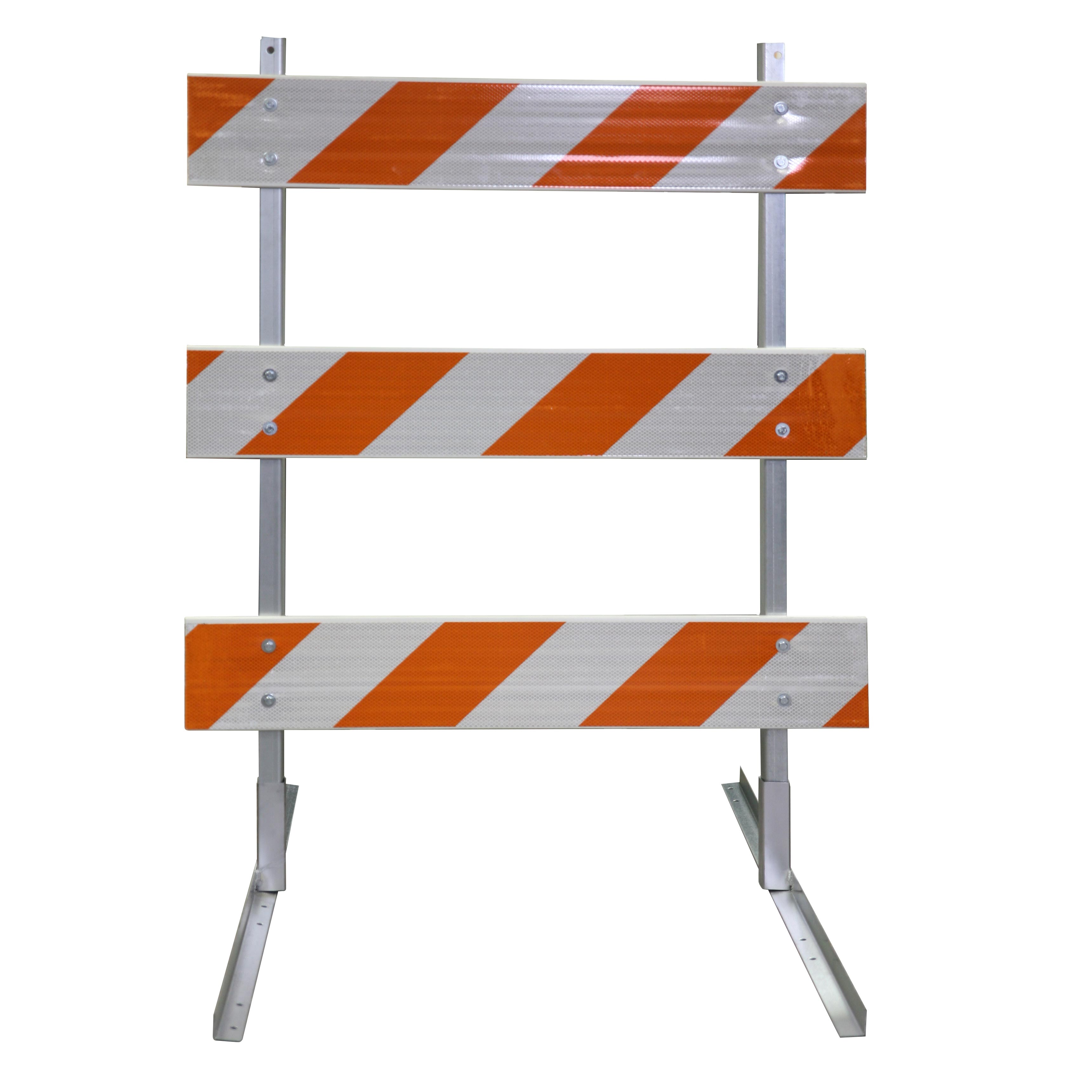

Short Description: | The TD2600 Plastic Rail and Angle Steel Type III Barricade can be purchased as assembled units or interchangeable component parts. Legs and boards are available for individual purchase. |
Type III: | YES |
Upright Dimensions: | 63.00" X 1.75" (each side) |
Upright Material: | Hot rolled high carbon steel |
Download PDFs:
Product Information Sheet
- FHWA Work Zone Approval Letter WZ-82
- FHWA Work Zone Approval Letter WZ-85
- FHWA Work Zone Approval Letter WZ-128
- TD2600 Type III Plastic & Angle Steel
