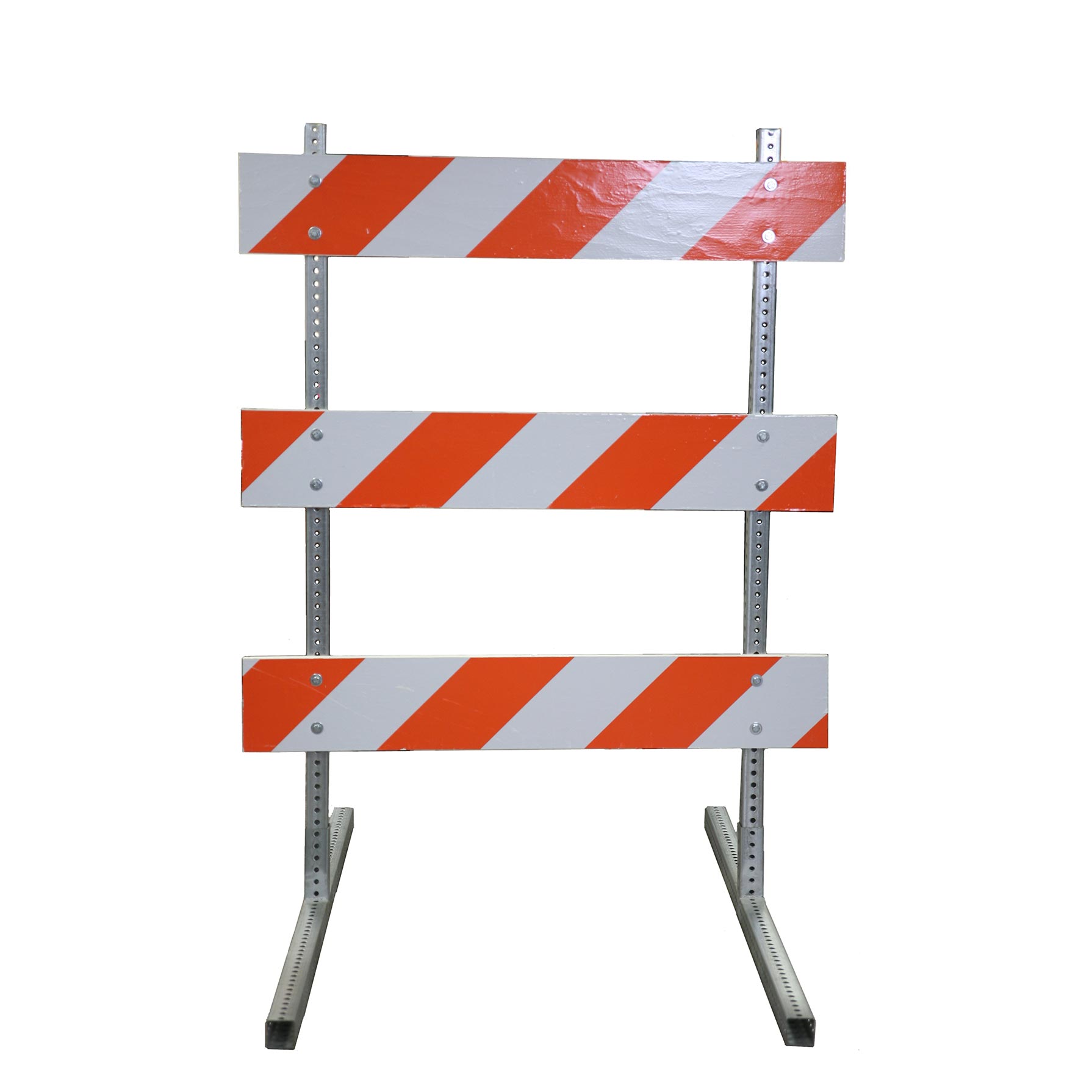

Thumbnail Filmstrip of TD2550 Type III Works Barricade – Plywood/Tubular Steel Images
COMPLIANCE
- NCHRP350 Compliant: WZ-85, WZ-54
- MUTCD Compliant
Product Features:
- Type III barricades can be purchased as assembled units or component parts.and Legs and boards are available for individual purchase.and All TD2550 components are interchangeable.
- Breakaway Type III Works Barricade is available using Unistrut's Telespar tubing with breakaway base, bracket, and detachable feet.
- Barricade models 8 feet wide and greater include an anti-rotation stabilizer bar between uprights for increased stability.
- Breakaway base yields to impacting vehicles.and Easily detachable feet allow for efficient transportation, assembly, and storage.
Product Specifications:
| Board Length : | 4', 6' , 8', 10', & 12' |
| Board Material : | Plywood |
| Board Thickness : | 3/4" |
| Board Width : | 8.00" |
| Center to Center Dimensions : | 20.00" minimum |
| Height : | 61.50" minimum |
| Height of Bottom Panel / Board of Roadway : | 13.50" minimum |
| Height of Sheeting Above Roadway : | 61.50" minimum |
| Height of Top Board Above the Roadway : | 61.50" minimum |
| Legs Dimensions : | 60.00" long X 1.750" sq. |
| Legs Material : | PSST |
| Legs Weight : | 9.4 lbs |
| Reflective Sheeting : | Many options available |
| Type III : | YES |
| Upright Dimensions : | 1.50" X 1.50" X 62.00" |
| Upright Material : | PSST |
Download PDFs:
Product Information Sheet
Approvals & Certifications
MSDS PDFS
