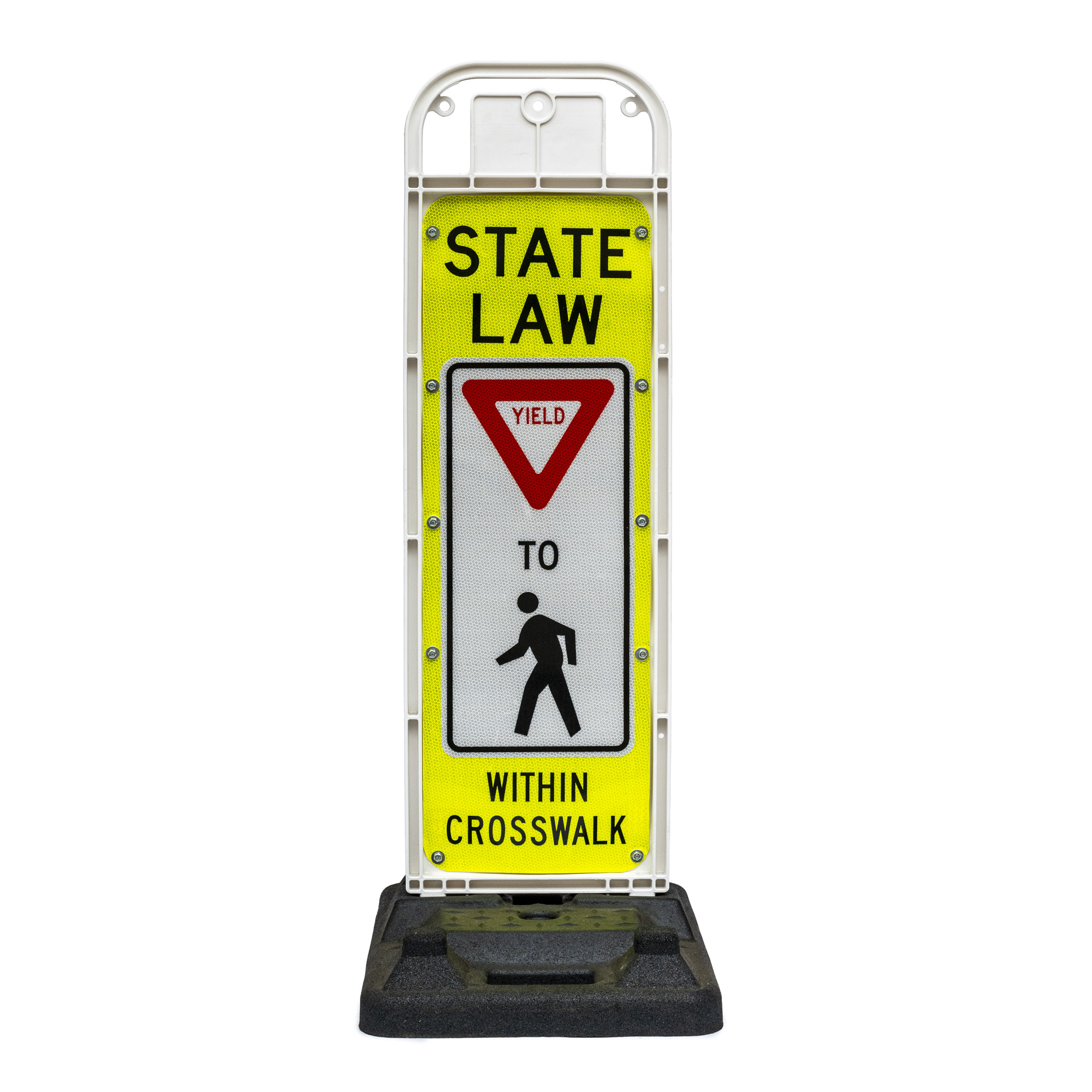

TD6500 UVP Universal Vertical Panel

Thumbnail Filmstrip of TD6500 UVP Universal Vertical Panel Images

    COMPLIANCE
    • NCHRP350 Approved:and WZ-271 MUTCD Compliant
    • All sheeting complies with ASTM 4956
    Rubber Base is 100% Post-Consumer Recycled Rubber.

    cal recycle icon
    usa icon
    Purchase TD6500 UVP Universal Vertical Panel

    SKU: TD6500 TD6500 UVP Universal Vertical Panel

    Pallet Qty. 50

    The TD6500 UVP Universal Vertical Panel is injection molded for increased durability.

    Choose the following options for your quote:

    Select Sides:

    to access your Job Lists.

    Product Features:

    • Injection molded for increased durability (an industry first).
    • Extra large handle for sure-handed gripping.
    • Signage area accepts easily-replaceable reflective sheeting or customized signage and is recessed to protect sheeting from "wear and tear".
    • Stacking tabs work in both directions to allow flat stacking.
    • When used with 24" tall reflective sheeting, lower area may be customized with a large printed logo.
    • Unit stabs securely into our 100% recycled rubber Diamond Series Base, but easily detaches upon impact - thereby saving the panel.
    • Vertical Panel is made from 95% Recycled Content plastic with additional impact modifiers and UV stabilizers added.
    • Rubber Base is made from 100% Post-Consumer Recycled Rubber.
    Product Specifications:
    Base Color: Black
    Base Dimensions: 5.00" X 18.00" X 27.00".
    Base Material: 100% Post-Consumer recycled rubber
    Base Weight: 37 lbs.
    Colors: Fluorescent Orange or White.
    Height: 48.50 inches
    Height of Sheeting Above Roadway: 42.00 inches
    Panel Material: UV Stabilized polymers from recycled materials.
    Panel Thickness: 2.00"
    Panel Width: 14.00"
    Recycled Content: Rubber Base is 100% Post-Consumer Recycled Rubber.
    Reflective Sheeting: Many options available.
    Short Description: The TD6500 UVP Universal Vertical Panel is injection molded for increased durability.
